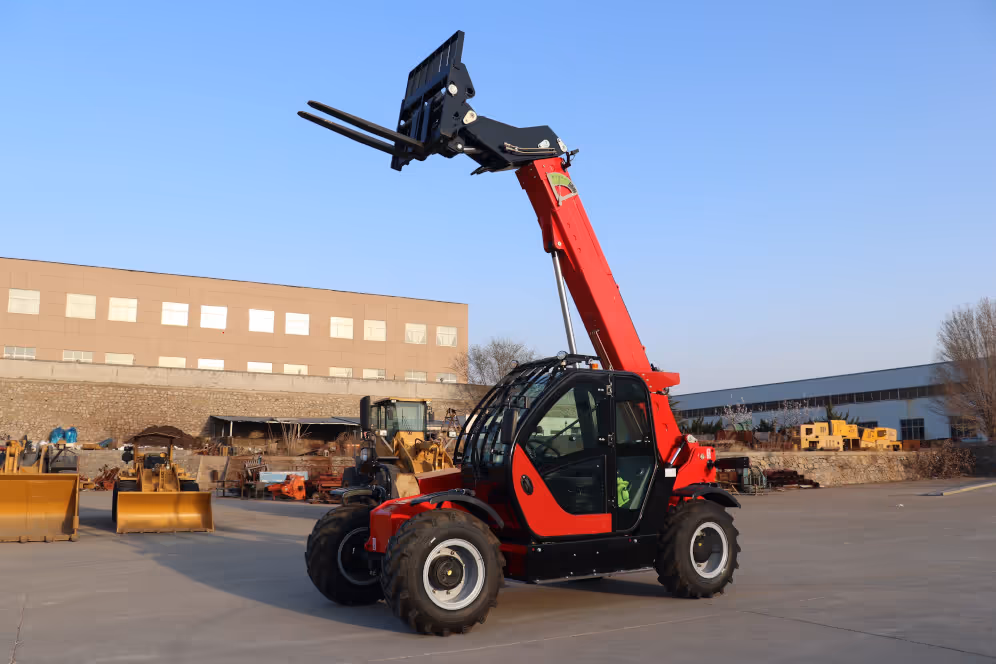

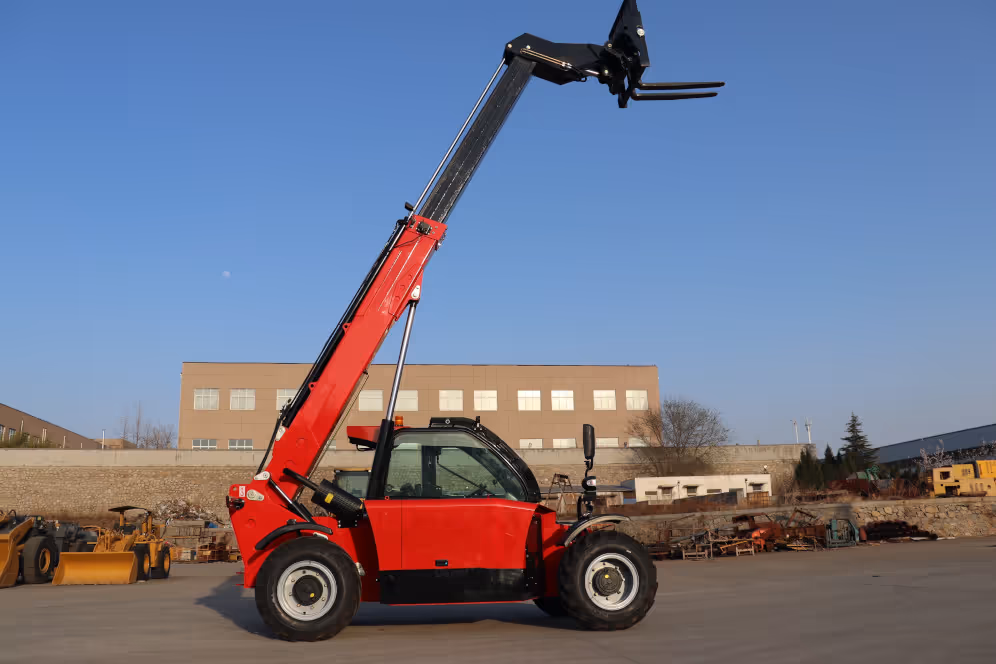

TH1040 Telehandler
4 Ton Telehandler with 10 Meter Lifting Height
Specifications
Rated Load
4.0 Ton
Operating Weight
8 870kg
Max Lifting Height
10 000mm
Max Horizontal Boom Extension
5 950mm
Min Turning Radius
4 580mm
Max Climbing Grade
25%
Max Brake Distance
1 000mm
Performance
Drive Type
Torque converter
Hydraulics
Main Boom Lifting Time
12s
Main Boom Landing Time
8s
Boom Extending Time
13s
Boom Retracting Time
9s
Traveling Speed
1st Gear (F)
5 km/h
2nd Gear (F)
10 km/h
3rd Gear (F)
18 km/h
4th Gear (F)
36 km/h
1st Gear (R)
8 km/h
2nd Gear (R)
12 km/h
3rd Gear (R)
30 km/h
Differential-Axles
Driving Type
4 wheel steering; Crab steering; Front-wheel steering
Front Axle
Rigid axle
Rear Axle
Oscillating axle
Brake System
Brake Type
Service air brake on the 4 wheels with double hydraulic system
Dimensions
Overall Length
5 230mm
Overall Width
2 200mm
Overall Height
2 300mm
Wheel Base
3 050mm
Wheel Track
1 700mm
Min Ground Clearance
350mm
Tyres
Standard Tyre Size
16/70-20
Engine
Model
Yuchai 4102
Rated Power
77kW
Tank Capacities
Fuel Tank
95 L
Hydraulic Oil Tank
70 L
