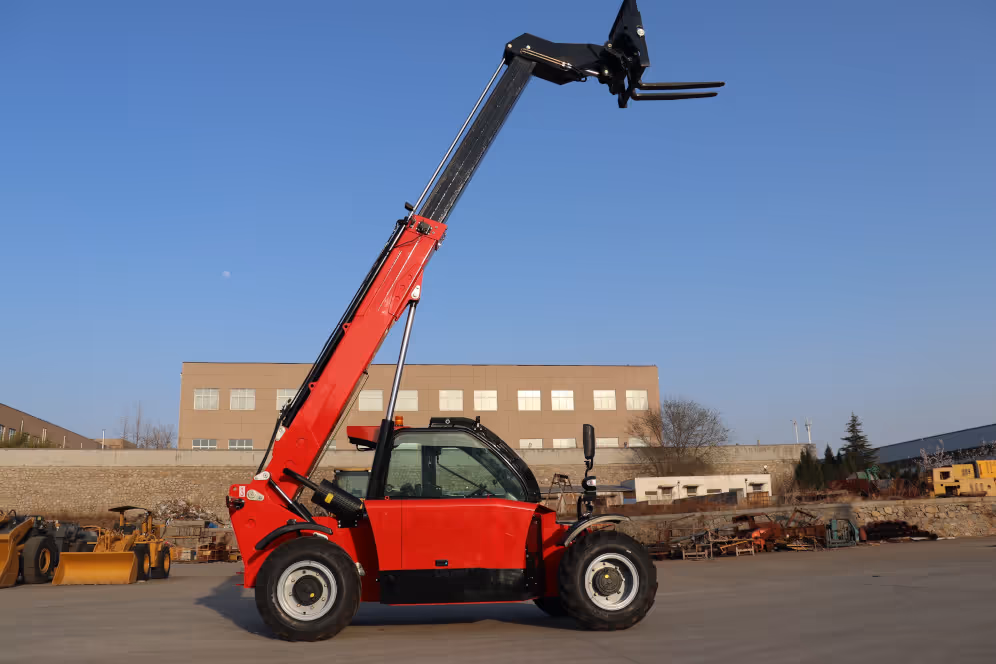

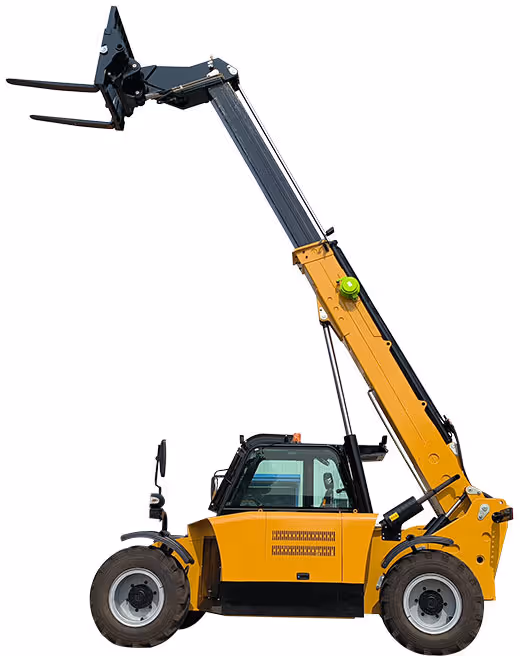

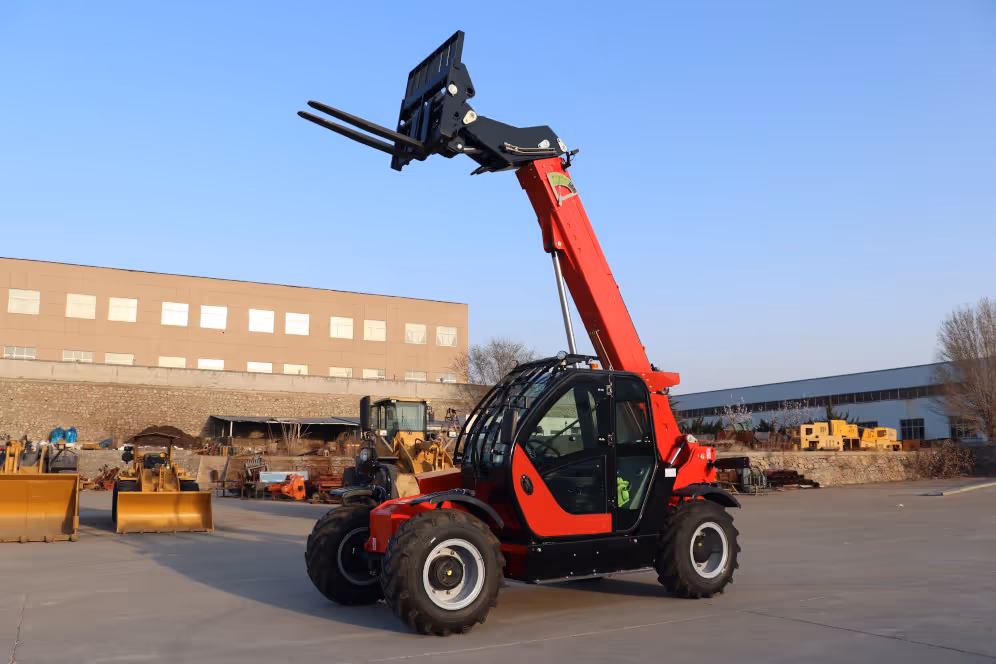

TH1440 Telehandler
4 Ton Telehandler with 14 Meter Lifting Height
Specifications
Rated Load
4.0 Ton
Operating Weight
11 500kg
Max Lifting Height
14 000mm
Max Horizontal Boom Extension
9 370mm
Min Turning Radius
5 250mm
Max Climbing Grade
25%
Max Brake Distance
1 000mm
Performance
Drive Type
Torque converter
Main Boom Lifting Time
12s
Main Boom Landing Time
8s
Boom Extending Time
15s
Boom Retracting Time
10s
Traveling Speed
1st Gear (F)
5 km/h
2nd Gear (F)
12 km/h
3rd Gear (F)
20 km/h
4th Gear (F)
38 km/h
1st Gear (R)
8 km/h
2nd Gear (R)
15 km/h
3rd Gear (R)
25 km/h
Differential-Axles
Driving Type
4 wheel steering; Crab steering; Front-wheel steering
Front Axle
Rigid axle
Rear Axle
Oscillating axle
Brake System
Brake Type
Service air brake on the 4 wheels with double hydraulic system
Dimensions
Overall Length
6 680mm
Overall Width
2 280mm
Overall Height
2 450mm
Wheel Base
3 450mm
Wheel Track
1 880mm
Min Ground Clearance
350mm
Tyres
Standard Tyre Size
16/70-24
Engine
Model
Cummins
Rated Power
92kW
Tank Capacities
Fuel Tank
125 L
Hydraulic Oil Tank
100 L
