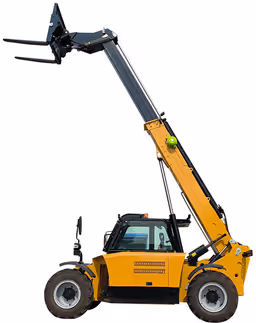

TH1840 Telehandler
4 Ton Telehandler with 18 Meter Lifting Height
Specifications
Rated Load
4.0 Ton
Operating Weight
14 000kg
Max Horizontal Boom Extension
13 100mm
Min Turn Radius
4 200mm
Max Climbing Grade
65%
Max Brake Distance
1 000mm
Performance
Drive Type
Torque Converter
Main Boom Lifting Time
11-17.5s
Main Boom Landing Time
16-23.5s
Boom Extending Time
15-22.5s
Boom Retracting Time
11-18s
Traveling Speed
1st Gear (F)
5 km/h
2nd Gear (F)
12 km/h
3rd Gear (F)
20 km/h
4th Gear (F)
30 km/h
1st Gear (R)
5 km/h
2nd Gear (R)
12 km/h
3rd Gear (R)
20 km/h
Differential-Axles
Driving Type
4 wheel steering; Crab steering; Front-wheel steering
Front Axle
Rigid axle
Rear Axle
Oscillating axle
Brake System
Brake Type
Service air brake on the 4 wheels with double hydraulic system
Dimensions
Overall Length
7 060mm
Overall Width
2 440mm
Overall Height
2 677mm
Wheel Base
3 070mm
Wheel Track
1 960mm
Min Ground Clearance
380mm
Tyres
Standard Tyre Size
16/70-24
Engine
Model
Yunnei
Rated Power
92kW
Tank Capacities
Fuel Tank
100 L
Hydraulic Oil Tank
170 L
